GUARDIAN BUILDING INSTRUCTIONS

The Guardian is a small guard robot that lets you see what's happening at home. The robot is controlled using text messages. Here is a step by step building instructions.


STEP SIX (Main Power Down Circuit)

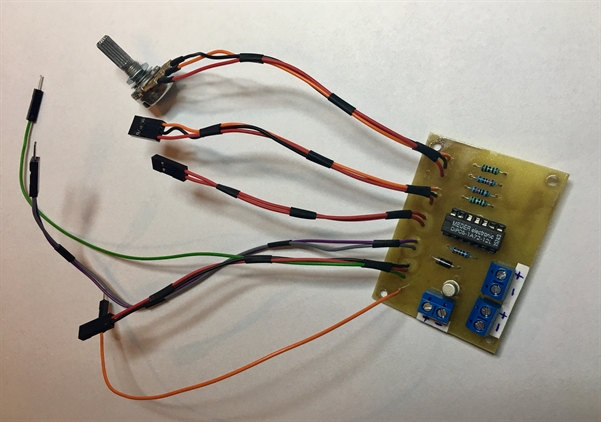

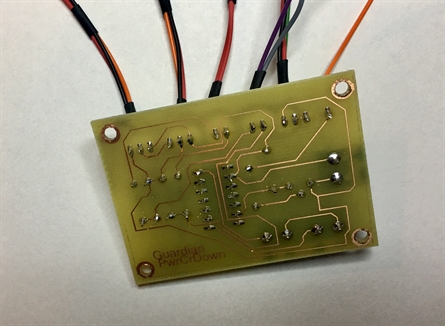

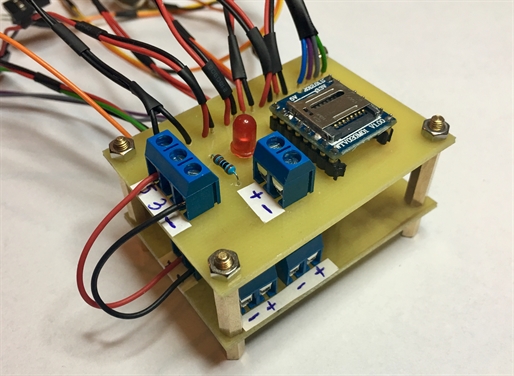

Make Guradian Main Power Circuit Down board.

Main Power Circuit Down part list:
  1 x Main Power Circuit Down Board
  1 x DIL relay MEDER DIP05-1A72-12L
  1 x Transistor 2N2222A
  1 x Diode 1N4004
  1 x Resistor 1K
  2 x Resistor 10K
  2 x Resistor 100K
  1 x Potentiometer (LCD pot.) 10K
  3 x Terminal block

Main Power Up Circuits:

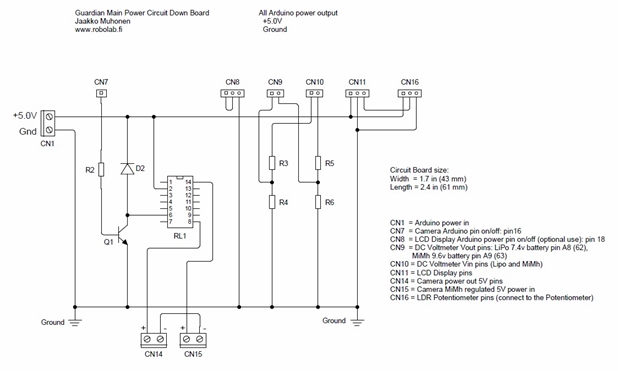

- Guardian Main Power Circuit.pdf
- Guardian Main Power Circuit Down.pdf

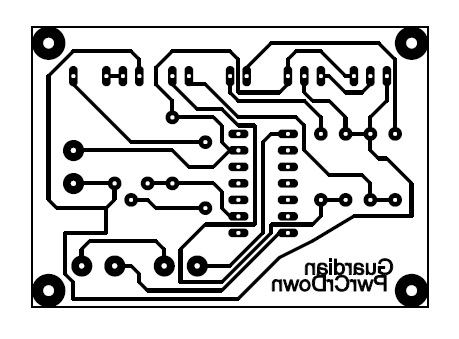

- Guardian Main Power Circuit Down PCB Artwork.pdf

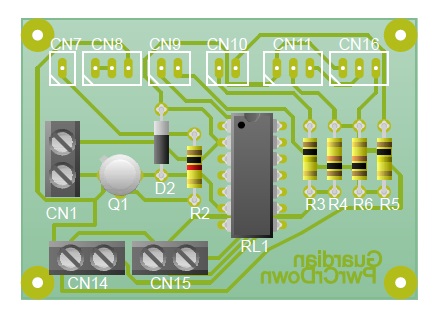

- Guardian Main Power Circuit Down PCB Realword.pdf
